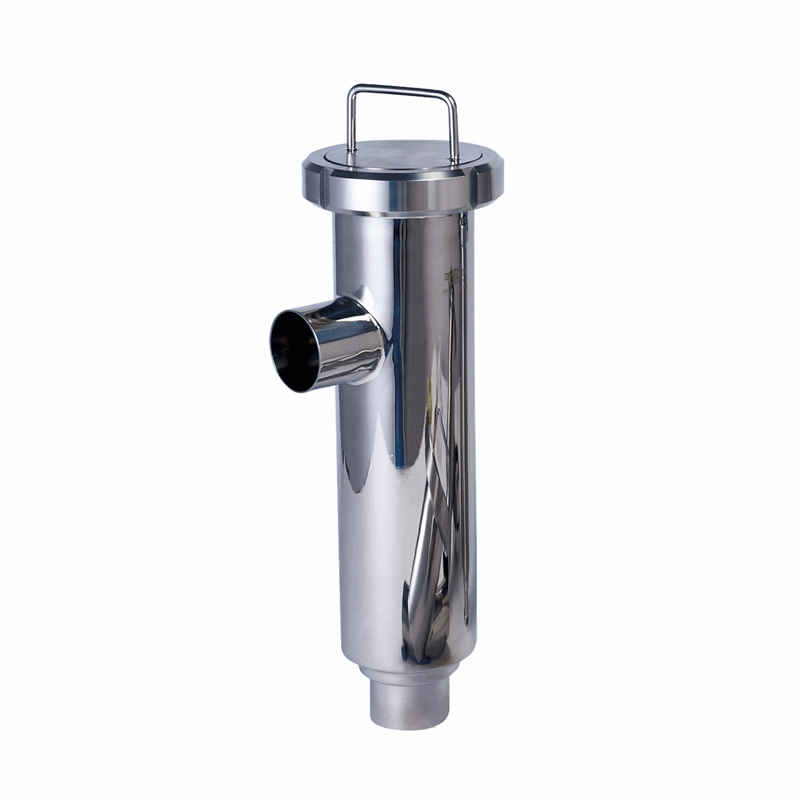

Angle-type Filters

ZhengYu angle-type filters are used to filter solids and liquids in the food and beverage industry. If a liquid flows through the filter, the solid components contained in the liquid will be intercepted by the filter. The corner screen can be easily and quickly removed and cleaned from the embedded housing. Different filters are available and easy to assemble and disassemble.


Angle-type Filters

Technical Data

Item Details
Sizes DN25- DN100 1"-4"
Materials Product contact:304/1.4301 316L/ 1.4404
No Product contact:304/1.4301
Seals EPDM,NBR, FPM
Screen insert Slotted screen:0.25mm
Perforated plate:0.5x10mm / 0.75 x10mm
Surface Ra = 0.8μm
Nominal pressure 10bar
Operating temperature 0 °C -100 °C
Operating temperature CIP/SIP EPDM:140 °C
NBR:110 ° C
FPM:90 ° C
Connection Thread , clamp , welding
